当前位置:首页> 产品中心

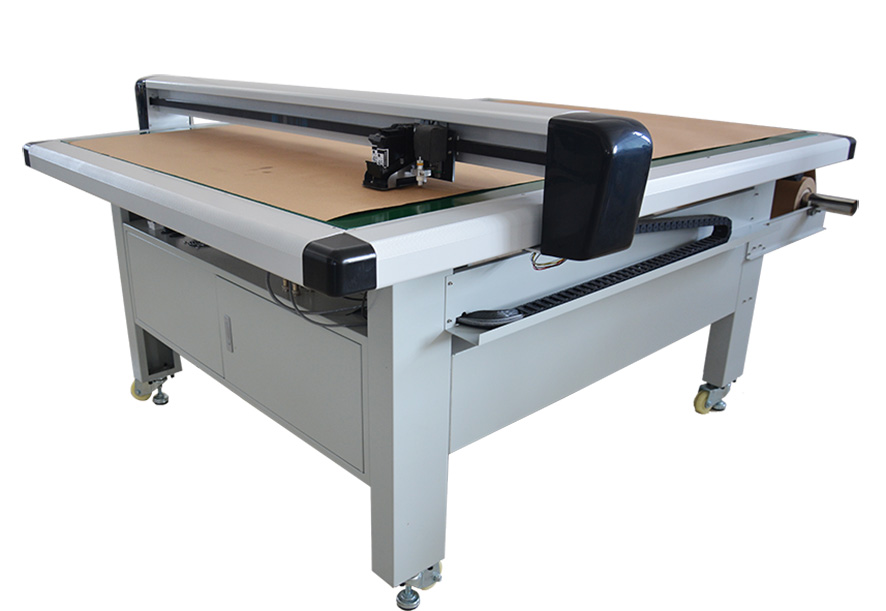

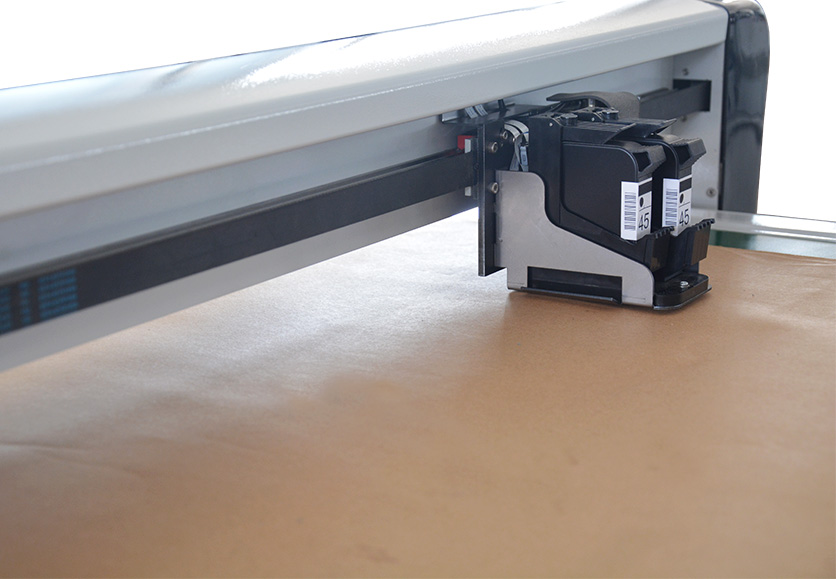

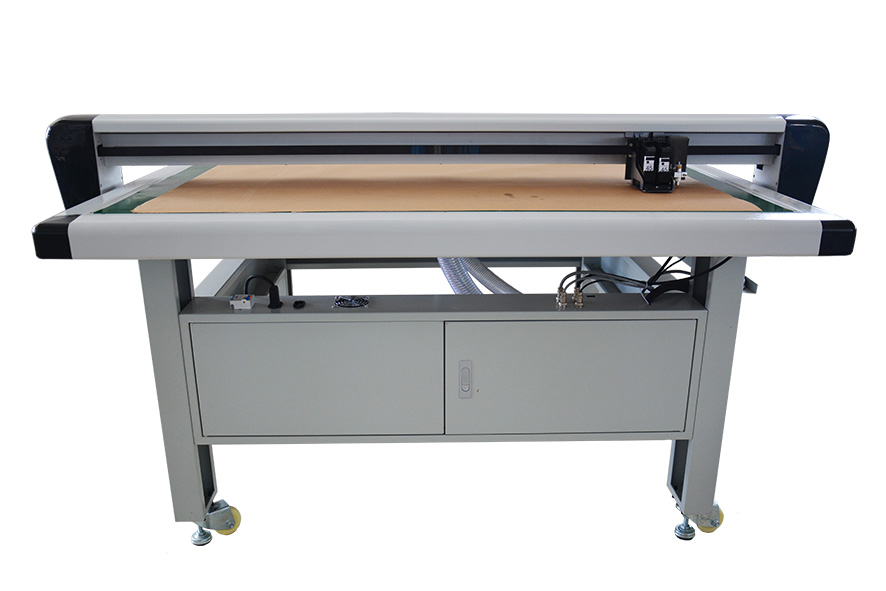

45平板喷切机


性能介绍:

1. 采用高性能集成电路板,机箱线路端口少,故障点少,排列整齐,设备可与任一电脑连接,中英文液晶屏显示,操作设计简便方便;进口传动部件,高速、高精度;1. Using high-performance integrated circuit board, the chassis has fewer ports, fewer failure points, neatly arranged, the equipment can be connected to any computer, Chinese and English LCD screen display, simple and convenient operation design; imported transmission components, high speed and high precision;



2. 精度:裁切样片精度高,对称性能好,完全适用于有更高要求的箱包行业,可实现全刀、半刀裁切,圆弧裁切圆顺;2. Accuracy: The cutting sample has high precision and good symmetry performance, which is completely suitable for the luggage industry with higher requirements. It can realize full-cut and half-cut cutting, and the arc cutting is round and smooth;



3. 超强真空吸附;可裁切2mm以下材料,且对不大于500克等较硬的柔性材料,也能达到完美精准裁切;3. Super vacuum adsorption; can cut materials below 2mm, and can also achieve perfect and precise cutting for hard and flexible materials not greater than 500 grams;



4. 采用网络TCP接口方式.以太网与电脑连接方便,可在局域网内实现台电脑控制;4. Adopting network TCP interface mode. The connection between Ethernet and computer is convenient, and multiple computers can be controlled in the local area network;



5. 可连接任意CAD软件,可裁切牛皮纸,白卡纸,鸡皮纸、黄厚纸板、红硬纸板、PVC板、纤维中底板、碳纤维预浸料等,广泛应用于服装、制鞋、箱包等行业;5. Can be connected to any CAD software, can cut kraft paper, white cardboard, chicken skin paper, yellow cardboard, red cardboard, PVC board, fiber midsole, carbon fiber prepreg, etc., widely used in clothing, shoemaking, luggage And other industries;



6.为服装企业提供全套裁剪自动化解决方案,降低用工成本.6. Provide a full set of automation solutions for apparel companies to reduce labor costs.
