当前位置:首页> 产品中心
模板切割机

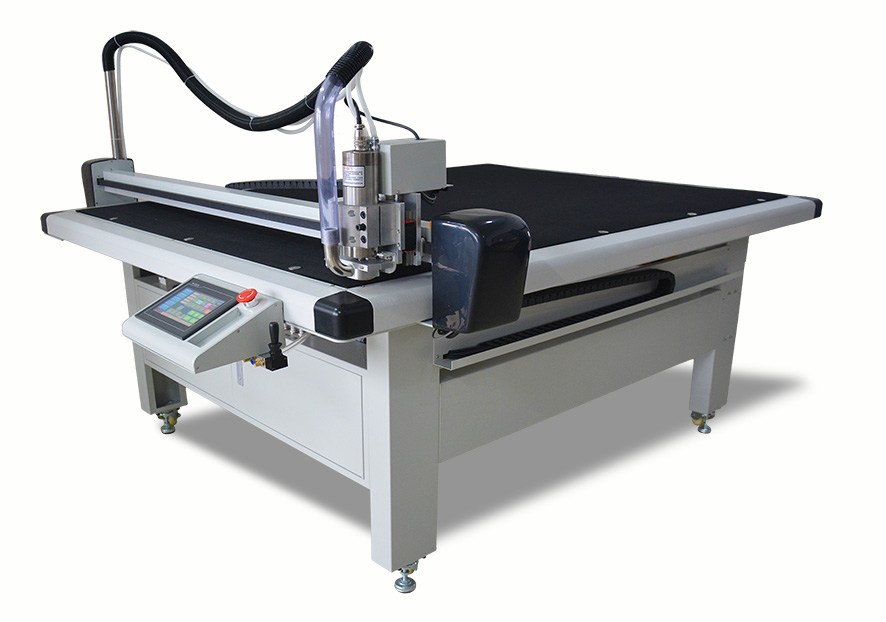

 模板工艺铣切一体机


 性能介绍:

1. 一机多用:多功能模板铣切一体机是集绘图、样板裁切、模板制作开槽为一体的多功能机型;

2. 不同直径铣刀、可快速更换以适用于不同材料的裁切;

3. 强大的兼容功能,与市场上任意服装CAD兼容;·软件系统可以导入各类DXF/PLT等纸样文件,并用这些文件快速生产工艺模板文件;

1. One machine: Multi-function template milling machine is a multi-function model integrating the template, the template production slot;

2. Different diameter milling cutters can be quickly replaced to apply to different materials;

3. Powerful compatibility features, compatible with any clothing in the market; · Software system can import paper sample files such as DXF / PLT, and use these files to quickly produce process template files;

4. 抛弃传统激光裁切,利用刀具裁切,更环保无害;

5. 彻底摆脱常见的服装技术困扰:领头、门襟、袋盖、袋口、对格等等各个部位,完完全全可取代一些价格高的专用设备,例如:开袋机,上袖机,打褶机。

6. 自定义切割顺序,可根据设计需要设定切割顺序;

4. Abandon traditional laser cutting, using tool stealing, more environmentally friendly;

5. Thoroughly get rid of common clothing technology troubles: lead, door stylus, bag cover, bag, match, etc., completely replace some special equipment, such as karaoke machine, wall sleeve, Pleated machine.

6. Customize the cutting order, can set the cutting order according to the design;

7. 模板软件可以自由打版设计样板,对样板进行开槽处理直接快速生成模板,取代了传统手工操作复杂、繁琐的过程;

8. 自动生成模板外框,可选用外框类型 (矩形、凸包轮廓、轮廓线等);

9. 为服装企业提供全套自动化解决方案,降低用工成本

7. Template software can be used freely to type design samples, slotting the template, direct fast generation template, replacing the traditional manual operation complex, cumbersome process;

8. Automatically generate template frame, optional outer frame type (rectangular, convex profile, contour, etc.);

9. Provide full set of automation solutions for clothing companies to reduce employment costs.

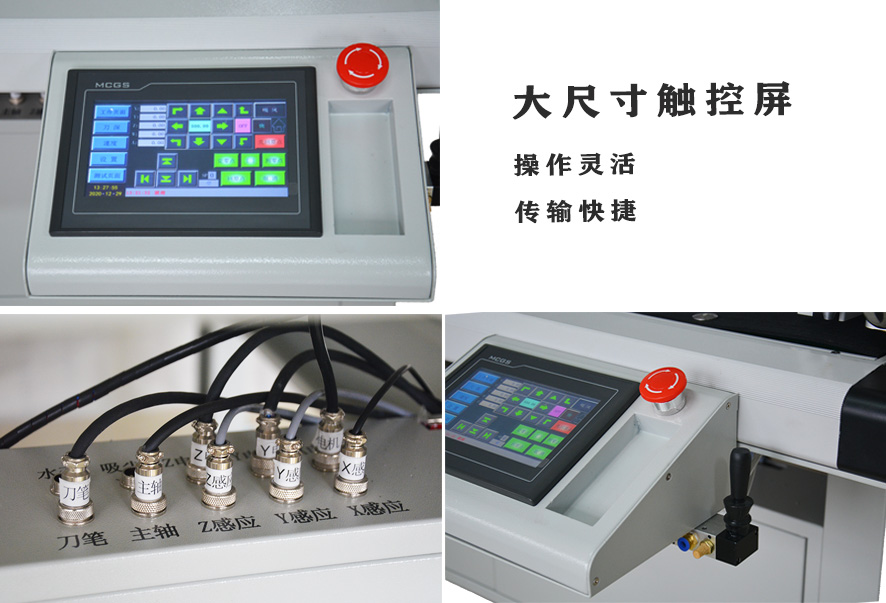

10.控制界面大尺寸触控屏操作,计算机辅助设计与绘切同步,操作灵活,传输快捷可靠.

10. The control interface is operated by a large-size touch screen, and the computer-aided design is synchronized with the drawing and cutting, the operation is flexible, and the transmission is fast and reliable.




模板机技术参数:

型号model

     MC-1215A(双用型)

     MC-1215B(单用型)

工作幅面Maximum work

W1200XL1500mm

      W1200XL1500mm

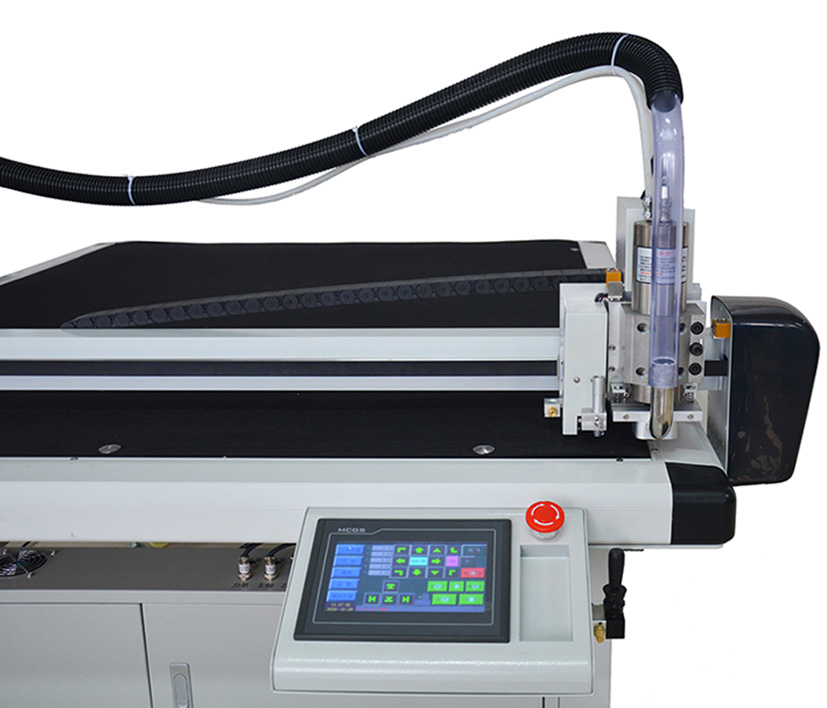

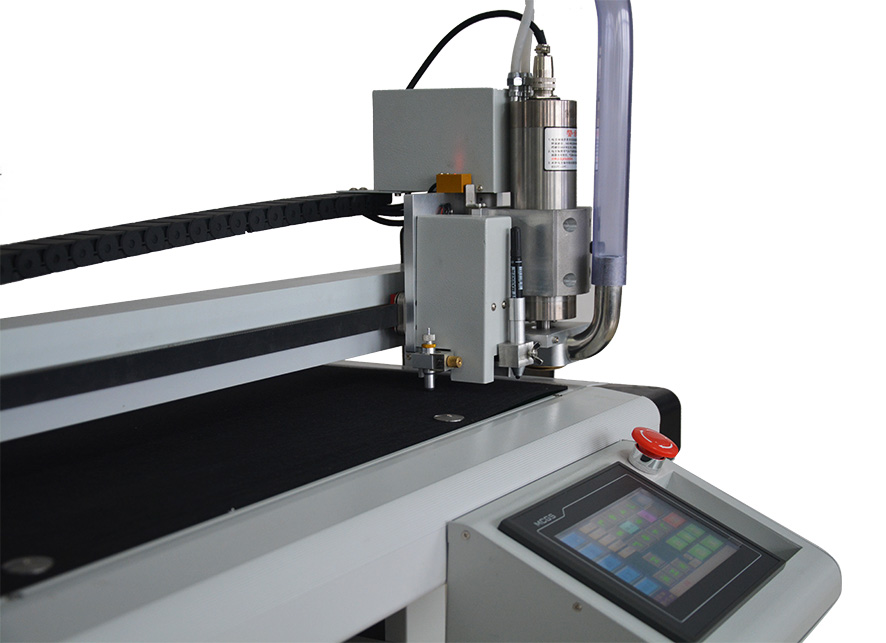

主机/主轴配置Spindle configuration

水冷循环,800W转速可达24000, 电磁刀,油性笔装置,吸屑装置,Water-cooled cycle, 800W speed can reach 24,000, electromagnetic knife, oily pen device, chip appler

水冷循环,800W-1200W选配,转速可调24000-40000, 油性笔装置,吸屑装置,Water cooling cycle, 800W-1200W optional, adjustable speed 5000-40000, oil-based pen device, dust suction device

控制界面Control interface

中文系统,10寸触控屏,Chinese system, 10 inch touch screen,

最大切割速度Milling speed

1~1200mm/s可调

最大铣切速度

1~1000mm/s可调

最大铣切厚度Maximum cutting thickness

≦5mm PVC材料

铣刀类型Milling cutter type

Ф3.175/4/6mm单刃/双刃,玉米刀,据实际材料选择-Ф3.175 / 4 / 6mm single-edged / double-blade, corn knife, according to actual materials

材料类型material type

铣切:PV板,高温板,PET板,亚克力板等Milling: PV board, high temperature board, PET board, acrylic board, etc.     切割:牛卡纸,鸡皮纸,白板纸等Cutting: cow cardboard, chicken skin, white paper, etc.

传动系统Transmission system

细分驱动器、伺服驱动马达、Y向双边直线导轨,主轴丝杆传动切割,High subdivision drive, hybrid servo drive motor, Y-direction bilateral linear guide, spindle screw drive cutting

吸尘方式Vacuum method

工业级15L强力吸尘装置,功率1.5KW/Industrial grade 15L powerful vacuum cleaner, power 1.5KW

电压/功率Voltage / power

AC220V/60Hz,3.5KW

材质固定方式Material fixing method

气源夹具,真空吸附负压风机1.5KW-配置羊毛毡,Air source fixture, vacuum adsorption-equipped with wool felt,

数据连接格式Data Format

PLT兼容模式/HPGL语言格式文件,网口连接,PLT compatible mode HPGL language format file, network port connection

外型尺寸Dimensions

L210xW180xH110cm(不含吸屑装置)
